Neo6502pc - Open Source 6502 Plattform + RPi RP2040 von Olimex

[andymanone]

.
Neo6502pc - Open Source 6502 Plattform + RPi RP2040 von Olimex.

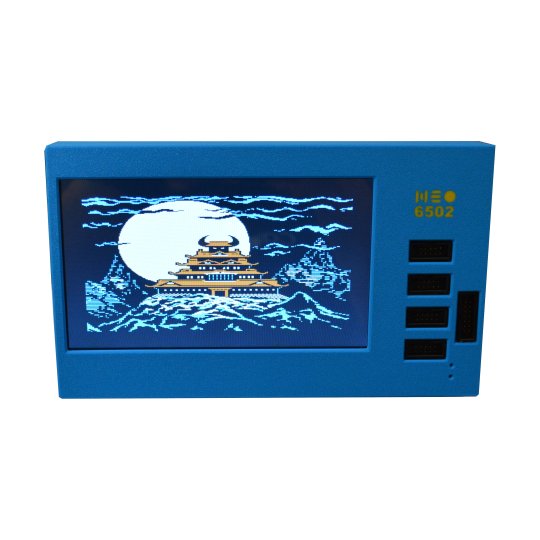

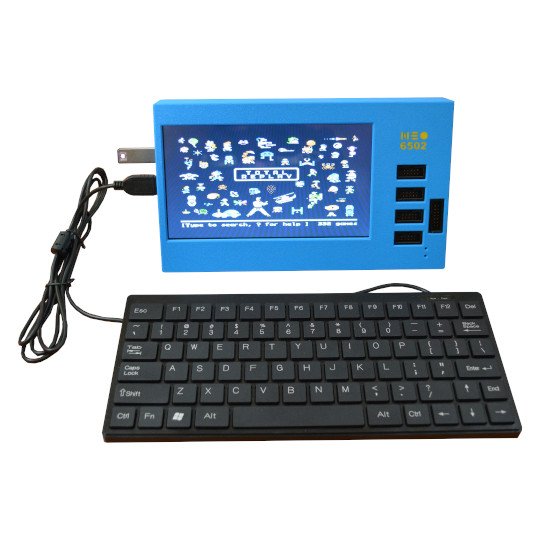

World fastest 6502 computer Neo6502pc all in one computer with LCD display with touch panel, Lipo battery, and USB host

FEATURES:
Neo6502 modern retro computer with real W65C02 running at 6.25Mhz
USB host with three external USB-A hosts for flash drive, game pad, keyboard, mouse
Build in LCD display with touch panel acting like mouse
Build in LiPo battery charger and Lipo battery
4x UEXT connectors
one EXT 12 GPIO connector
Battery monitoring
Power on off switch
USB-C power input
Programming slide switch and boot button
USB-C for programming
Audio 3.5mm jack
Dimensions: 220x130x35 mm

Neo6502pc-user-manual.pdf

(1.1 MiB) 49-mal heruntergeladen

Gtx.,
andY

[pancio]

Very cool device!

Bought it last year and spend many hours to play :-) Now waiting for better time.. but it might be quicker as imagine because famous user Bocianu (Wojciech Bociański) ported a few games from Atari e.g. Mad PacMan and still developing staff for NEO6502!

BR,
pancio

[pancio]

As I mentioned earlier.. you may find many software from Bocianu here: https://neo6502.com/wiki/Software-links/

BR,
pancio
